LK-FCAMD RF anplifikatua InGaAs fotodetektagailua
- Banda zabalera zabala
- Bias-T integratua
- O/E Hibrido Integratua
- High Gain, Low Noise, Broadband
- SMA konektorea
- Low Dark Current, High signal-to-noise ratio
- Forma-faktore txikia.
Produktuaren Deskribapena
LK-FCAMPD is a fusion of optical and electronic technology, integrating a broadband InGaAs photodiode with a low-noise amplifier. This device is sensitive to wavelengths between 1000 and 1650nm, thanks to its InGaAs PIN photodiode, and the low-noise amplifier provides an RF gain ranging from 20 to 30dB.
LK-FCAMPD offers configurable bandwidth options, including 1 gigahertz, 2.5 gigahertz, and customizable bandwidths up to a maximum of 5 gigahertz. The device operates on a +5-volt power supply and features a standard FC (face-contacted) fiber-optic connector for optical input. The RF output is facilitated through an SMA-compatible connector, which is impedance-matched to 50 ohms.
LK-FCAMPD is lightweight, with a mass of less than 25 grams, making it suitable for various portable and compact applications. It is certified to comply with the Restriction of Hazardous Substances (RoHS) Directive 2.0, indicating its commitment to environmental and safety standards.
Ezaugarri teknikoak
| Tipikoa eta Absolutua Gehienezko Balorazioa | ||||
|---|---|---|---|---|
| Parametroa | Sym. | Typ | Balorazioa | Unitatea |
| Biltegirako tenperatura-tartea | TSTG | -45 ～ +85 | -55 ～ +100 | ℃ |
| Funtzionamendu-kaxa tenperatura-tartea | TC | 25 | -40 ～ +70 | ℃ |
| Alborapen-tentsioa | VR | +5 | +4.75 ～ +5.25 | V |
| Sarrerako potentzia optikoa | Pin | 0 | +5 | dBm |
| Erredura-potentzia optikoa | PB | - | + 13 | dBm |
| Berun soldadura tenperatura | Tp | 280 (10 s) | 330 (10 s) | ℃ |
| Ezaugarri elektriko/optikoak (TC = 22 ± 3 ℃) | |||||||
|---|---|---|---|---|---|---|---|
| Parametroa | ikur | Probaren egoera | Parametroen balioak | Unitatea | |||
| Uhin-luzeraren barrutia | λ | - | 1000 ~ 1650 | nm | |||
| Maiztasun-tartea | - | - | L - Band | S - Band | CM | - | |
| Seinale txikiko banda-zabalera | f-3dB | TC = 22 ± 3 ℃ | 0.03 ~ 1 | 0.03 ~ 2.5 | 0.1 ~ 5 | GHz | |
| Erantzukizuna | Re | VR =+5V, Pin =1mW | λ = 1310 nm | ≥ 0.85 | ≥ 0.90 | ≥ 0.90 | A / W |
| λ = 1550 nm | ≥ 0.90 | ≥ 0.90 | ≥ 0.90 | ||||
| RF Signal Gain | G | - | 30 ± 2 | 20 ± 2 | 20 ± 2 | dB | |
| Anplitudearen lautasuna | A | TC =-40～+70 ℃ | ≤ ± 1.5 | ≤ ± 1.5 | ≤ ± 2 | dB | |
| Irteera VSWR | VSWR | - | ≤ 2 | ≤ 2 | ≤ ± 2.2 | - | |
| Saturazio-potentzia optikoa | Ps | VR = +5 V, λ = 1550 nm AC modulatua |
+5 | dBm | |||
| Saturazio RF irteerako potentzia | Pout | - | 15 | dBm | |||
| Korronte iluna | ID | - | ≤ 10 | nA | |||
| Irteera inpedantzia | RL | - | 50 | Ω | |||
● Erantzun-kurba tipikoak

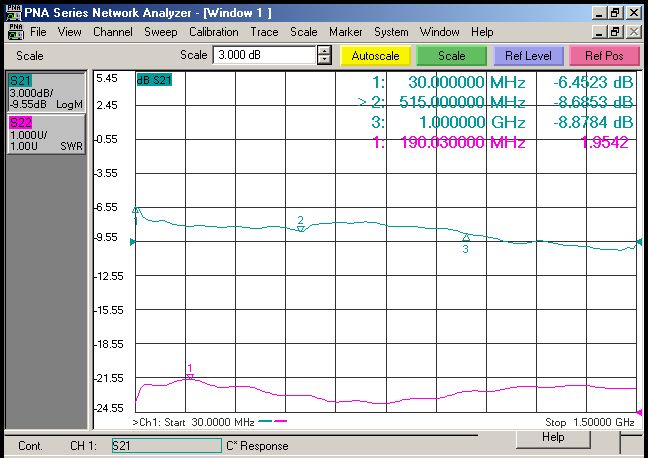

（ Fig . 1 L- Band FCAMPD InGaAs Photodetector Frequency Response）

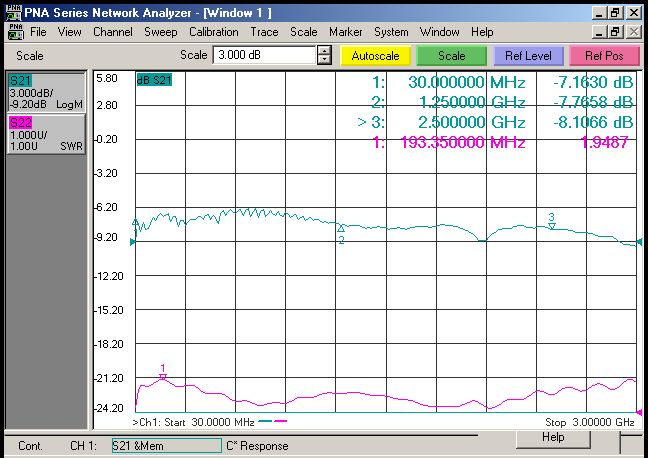

（ Fig . 2 S- Band FCAMPD InGaAs Photodetector Frequency Response）
（ Fig . 3 C- Band FCAMPD InGaAs Photodetector Frequency Response）

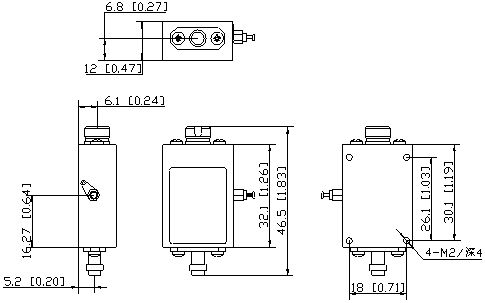

● Dimentsioak eta pinak (unitatea: mm [hazbete])
Konektore optikoa: FC (aurpegiarekin kontaktuan dagoen) zuntz optikoko konektorea
RF konektorea: SMA
● Ordering Information
1. orria:
| kodea | Banda-zabalera analogikoa |
| L | 0.03 ～ 1 GHz |
| S | 0.03 ～ 2.5 GHz |
| CM | Pertsonalizazioa (≦ 5GHz) |
● Neurriak
Ziurtatu zuntz akoplamenduaren alderdia garbi dagoela optozirkuitura konektatu aurretik.
RF interfazea eta interfaze optikoa hauts-tapoi batekin estali behar dira erabiltzen ez direnean.
The suitable ESD protection is required in storage, transportation and using .
Gure fotodetektagailu estandar guztiak modulutan pertsonaliza daitezke!
aplikazioak
Radar Informazioaren Prozesamendua
Gerra Elektronikoa
Antena Neurketa
Zuntz optikoko komunikazioak
Segurtasuna eta Zaintza
