LK-NYDMT UWB zuzeneko modulazioko transmisorea
- High-Speed Directly Modulated DFB Laser:
- Banda ultra-zabala (18 GHz baino hobea)
- Wavelength: DWDM(ITU)
- Alboko moduaren ezabatze-erlazio bikaina
- Oso integratutako modulu-ontziratzea
- Goi-Dinamikoko-Irismena
- Irteerako potentzia handia
- Funtzionamendu-kaxaren tenperatura: (-40 ℃ ~ 70 ℃)
Produktuaren Deskribapena
LK-NYDMT Transmitter is primarily made up of several key components, include high-speed directly modulated Distributed Feedback (DFB) laser, automatic optical power control circuit, automatic temperature control circuit, voltage-stabilizing conversion circuit, monitoring and indicating circuit. This transmitter provides a variable wavelength in line with the Dense Wavelength Division Multiplexing (DWDM) ITU standards.
It offers a modulation bandwidth that exceeds 18GHz and can achieve an output power of up to 10mW. Operated by a single positive power supply, the LK-NYDMT Transmitter maintains stable performance across a voltage range from +7V to +36V. The transmitter is designed with several advantageous features, such as minimal relative intensity noise, excellent stability of the output wavelength, and a high level of output power.
Furthermore, LK-NYDMT Transmitter is equipped with an advanced indication function that visually confirms the status of both the power supply and the optical power output, ensuring that the system is operating within optimal parameters, this feature is essential for real-time system monitoring and for the swift identification of operational anomalies.
Ezaugarri teknikoak
Gehienezko Balorazio Absolutuak
| Parametroa | Ikonoa | Min. | Tip. | Max. | Unitatea |
| Biltegiratze tenperatura | TSTG | -55 | + 25 | + 85 | ℃ |
| Operazioa tenperatura | TC | -40 | + 25 | + 70 | ℃ |
| RF sarrerako potentzia1 | Pin | - | + 10 | + 20 | dBm |
| Tentsioa | Vin | +7 | + 12 | + 36 | V |
(1) Uhin jarraituaren (CW) funtzionamendu modua.
Zehaztapen optiko eta elektrikoak (TC = 22±3℃)
| Parametroa | Ikonoa | Baldintzan | Min. | Tip. | Max. | Unitatea |
| Uhin-luzera | λ | - | DWDM(ITU) - |
nm | ||
| Maiztasuna (3dB) | f3dB | X banda | 0.1 | - | 12 | GHz |
| Ku banda | 1 | - | 18 | |||
| Argi-irteerako potentzia | P | - | 5 | 10 | - | mW |
| Intentsitate erlatiboaren zarata | rhine | - | - | - | -155 | dBc/Hz |
| Itzulera-galera (VSWR) | VSWR | X banda | - | - | 2 | - |
| Ku banda | - | - | 2.2 | |||
| Sarrerako 1 dB Konpresioa | - | - | + 13 | + 15 | - | dBm |
Energia-iturria (TC = 22±3℃)
| Parametroa | Min. | Tip. | Max. | Unitatea |
| Tentsioa | +7 | + 12 | + 36 | V |
| Oraingo(2) | 0.07 | 0.1 | 1 | A |
(2) Proba-baldintza: Vin = +12V.
● Erantzun-kurba tipikoa
Figure 1 LK-NYDMT-X Transmitter Typical Response Curve

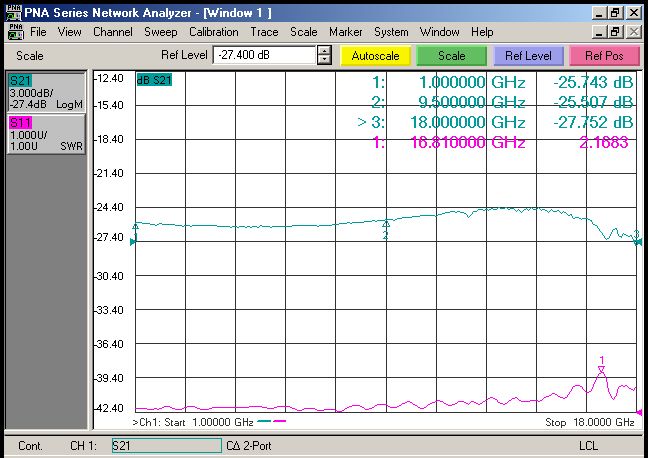

Figure 2 LK-NYDMT-Ku Transmitter Typical Response Curve
● Espektrograma tipikoa

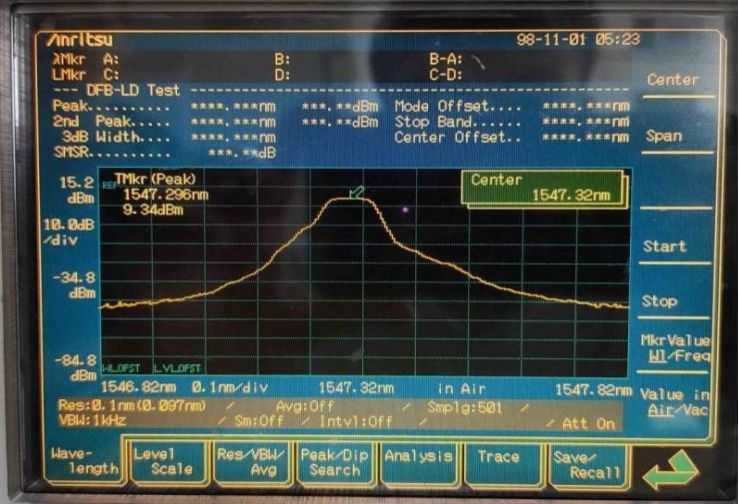

Figure 3 LK-NYDMT Transmitter Typical Spectrogram
● Dimentsio unitatea: mm [hazbete]

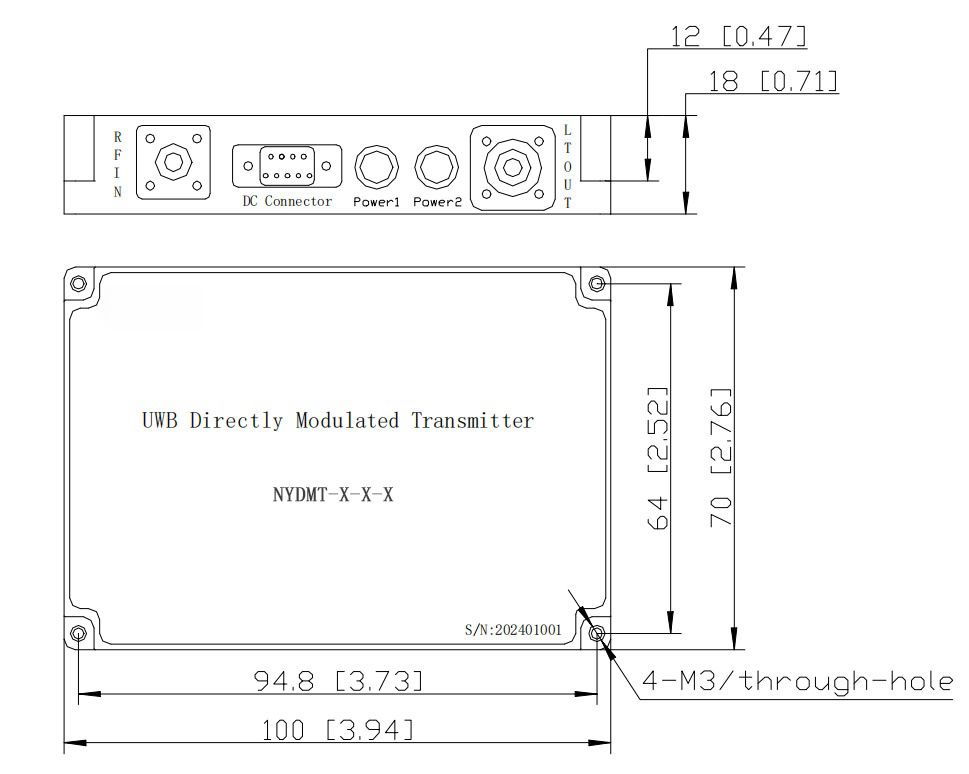

Figure 4 LK-NYDMT Transmitter Dimension
RF konektorea: SMA
Energia konektorea: J30J-9-ZKP
● Elikatze-iturriaren pinak
| Parametroa | Deskribapena | ||||||||
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Tentsioa | + 12V | NC | GND | NC | |||||
● Agindua informazioa
1. orria:
| Ikonoa | Deskribapena |
| DM | DWDM (Dense Wavelength Division Multiplexing) 7 PIN butterfly packagepackage |
2 fitxa
| Ikonoa | Deskribapena |
| X | 0.1 ～ 12 GHz |
| Ku | 1 ～ 18 GHz |
3. orria:
| Channel | Maiztasuna (THz) | Erdiko uhin-luzera (nm) | Channel | Maiztasuna (THz) | Erdiko uhin-luzera (nm) | |
| C01 | ALK-NY desired custom wavelength | C37 | 193.7 | 1547.72 | ||
| C02 | ITUz kanpokoa, 1547 nm – 1560 nm | C38 | 193.8 | 1546.92 | ||
| C03 | ITUz kanpokoa, 1557 nm – 1560 nm | C39 | 193.9 | 1546.12 | ||
| C04 | ITUz kanpokoa, 1530 nm – 1560 nm | C40 | 194 | 1545.32 | ||
| C15 | 191.5 | 1565.50 | C41 | 194.1 | 1544.53 | |
| C16 | 191.6 | 1564.68 | C42 | 194.2 | 1543.73 | |
| C17 | 191.7 | 1563.86 | C43 | 194.3 | 1542.94 | |
| C18 | 191.8 | 1563.05 | C44 | 194.4 | 1542.14 | |
| C19 | 191.9 | 1562.23 | C45 | 194.5 | 1541.35 | |
| C20 | 192 | 1561.41 | C46 | 194.6 | 1540.56 | |
| C21 | 192.1 | 1560.61 | C47 | 194.7 | 1539.77 | |
| C22 | 192.2 | 1559.79 | C48 | 194.8 | 1538.98 | |
| C23 | 192.3 | 1558.98 | C49 | 194.9 | 1538.19 | |
| C24 | 192.4 | 1558.17 | C50 | 195 | 1537.4 | |
| C25 | 192.5 | 1557.36 | C51 | 195.1 | 1536.61 | |
| C26 | 192.6 | 1556.55 | C52 | 195.2 | 1535.82 | |
| C27 | 192.7 | 1555.75 | C53 | 195.3 | 1535.04 | |
| C28 | 192.8 | 1554.94 | C54 | 195.4 | 1534.25 | |
| C29 | 192.9 | 1554.13 | C55 | 195.5 | 1533.47 | |
| C30 | 193 | 1553.33 | C56 | 195.6 | 1532.68 | |
| C31 | 193.1 | 1552.52 | C57 | 195.7 | 1531.9 | |
| C32 | 193.2 | 1551.72 | C58 | 195.8 | 1531.12 | |
| C33 | 193.3 | 1550.92 | C59 | 195.9 | 1530.33 | |
| C34 | 193.4 | 1550.12 | C60 | 196 | 1529.55 | |
| C35 | 193.5 | 1549.32 | C61 | 196.1 | 1528.77 | |
| C36 | 193.6 | 1548.51 | C62 | 196.2 | 1527.99 | |
4. orria:
| Ikonoa | Connector Mota | Deskribapena |
| N | Norberarena | Norberarena |
| A | FC / APC | 9/125μm SM zuntz estandarra |
| P | FC / PC | 9/125μm SM zuntz estandarra |
aplikazioak
Antena eta radarra
Kontra-neurri elektronikoen sistema
RF lotura analogikoen transmisioa
Banda zabaleko haririk gabeko komunikazioa
Komunikazio mugikorreko oinarrizko estazioa
