LK-HSPD-Ku-CM Abiadura Handiko InGaAs Fotodetektagailua
- Wide Bandwidth，High Speed
- Bias-T integratua
- AC Akoplatua
- Hermetikoki itxita, SMA konektorea
- Iluntasun-korronte baxua, seinale-zarata erlazio altua.
- Forma-faktore txikia.
Produktuaren Deskribapena
LK-HSPD-Ku-CM high-speed detector module is a sophisticated optoelectronic transceiver, meticulously engineered to cater to both digital and analog signal processing applications. This module is equipped with an InGaAs PIN photodiode, which boasts a spectral response range from 1250 to 1650 nanometers, inclusive of the essential matching electronics required for optimal signal alignment and conditioning.
LK-HSPD-Ku-CM is capable of delivering a bandwidth of 18 gigahertz, making it well-suited for high-speed data communications. The module is powered by a +5-volt supply, ensuring reliable operation and ease of integration with existing power systems. It adheres to the standards for single-mode 9/125-micrometer fiber inputs, facilitating compatibility with established fiber optic infrastructure. The Radio Frequency (RF) output is equipped with an SMA-compatible connector, which is meticulously impedance-matched to 50 ohms to ensure efficient signal propagation and minimal reflection.
LK-HSPD-Ku-CM is constructed with a hermetic sealing process, which provides robust environmental protection and enhances the module's resilience against moisture, dust, and other potential contaminants, thereby ensuring long-term stability and performance.
Ezaugarri teknikoak
| Tipikoa eta Absolutua Gehienezko Balorazioa | ||||
|---|---|---|---|---|
| Parametroa | Sym. | Typ | Balorazioa | Unitatea |
| Biltegirako tenperatura-tartea | TSTG | -45 ～ +85 | -55 ～ +100 | ℃ |
| Funtzionamendu-kaxa tenperatura-tartea | TC | 25 | -40 ～ +85 | ℃ |
| Alborapen-tentsioa | VR | 5 | -4.75 ～ +5.25 | V |
| Sarrerako potentzia optikoa | Pin | + 10 | + 13 | dBm |
| Erredura-potentzia optikoa | PB | - | + 16 | dBm |
| Berun soldadura tenperatura | Tp | 280 (10 s) | 330 (10 s) | ℃ |
| Electrical / Optical Characteristics ( TC = 22 ± 3 ℃ ) | |||||
|---|---|---|---|---|---|
| Parametroa | ikur | Probaren egoera | Parametroen balioak | Unitatea | |
| Uhin-luzeraren barrutia | λ | - | 1000 ~ 1650 | nm | |
| Maiztasun-tartea | - | - | Ku-Band | - | |
| Seinale txikiko banda-zabalera | f-3dB | TC= 22 ± 3 ℃ | 0.1 ~ 18 | GHz | |
| Erantzukizuna | Re | VR, Pin=1mW | λ = 1310nm | ≥ 0.75 | A / W |
| λ = 1550nm | ≥ 0.7 | ||||
| Anplitudearen lautasuna | A | TC =-40～+85 ℃ | ≤ ±1.5 | dB | |
| Irteera VSWR | VSWR | - | ≤ 2.5 | - | |
| Alborapen-tentsioa | VR | - | +5 | V | |
| RF Connector | - | - | SMA | - | |
| Saturazio-potentzia optikoa | Ps | VR, λ = 1550nm AC modulatua |
+ 13 | dBm | |
| Korronte iluna | Id | VR | ≤ 10 | nA | |
| Saturazio RF irteerako potentzia | Pout | - | -10 | dBm | |
| Irteera inpedantzia | RL | - | 50 | Ω | |

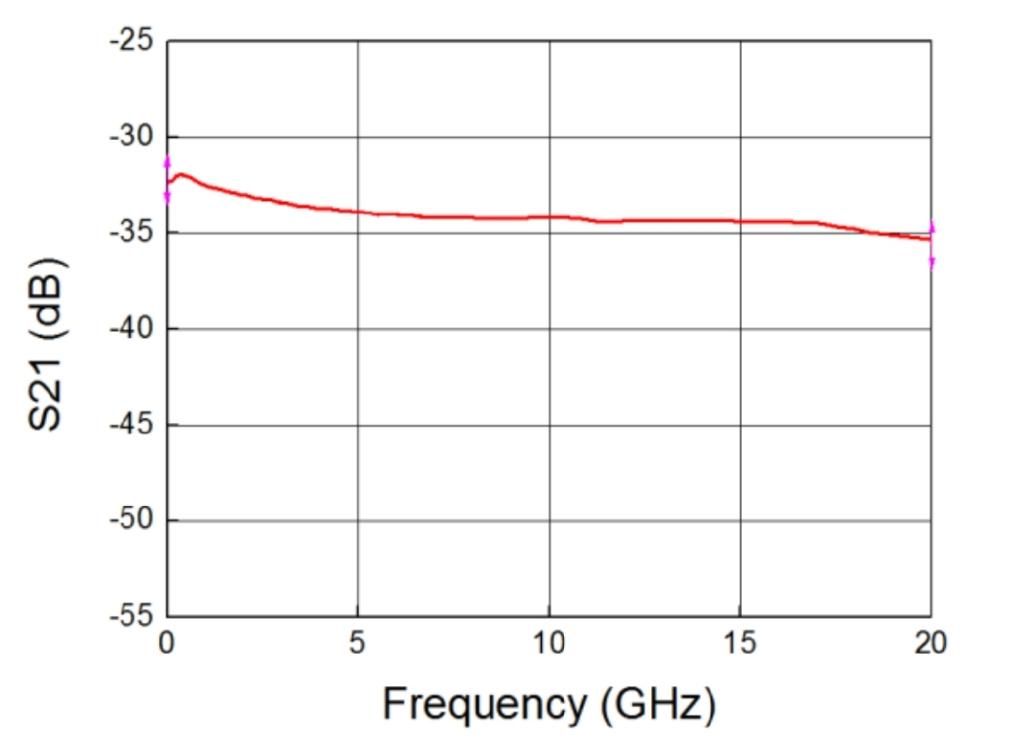

● Erantzun-kurba tipikoak
(VR, λ=1550nm, TC =25 ºC, Pin=0dBm)
(Fig. 1 Ku-Band Photodetector Frequency Response)

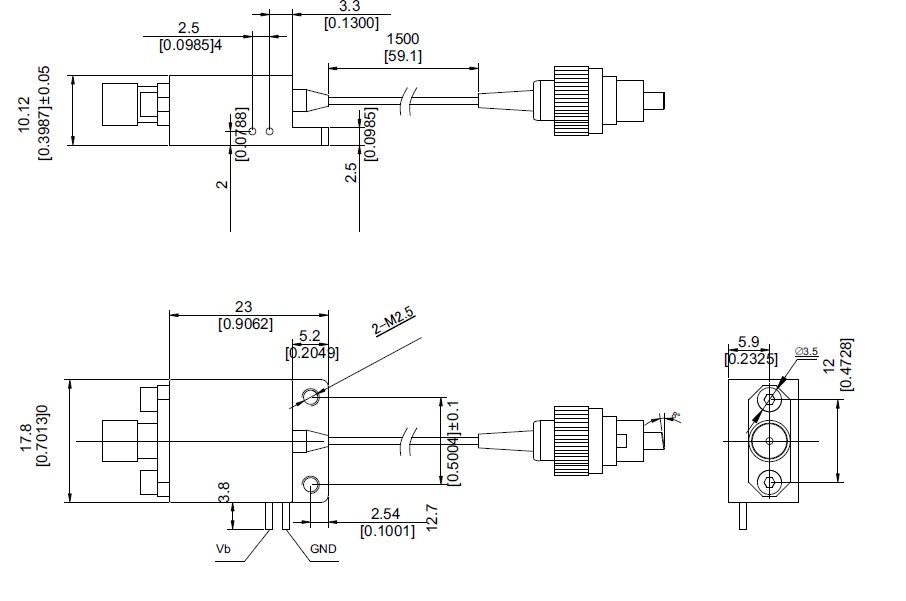

● Dimension and Pins ( Unit: mm[ inch] )
RF Connector： SMA
Remark: this is rev 1.1, Compared to the version sent to the customer on April 14, 2023, the overall dimensions have changed except for the tail fiber.
● Eskaera-informazioa
1. orria:
| kodea | Banda-zabalera analogikoa |
| Ku | 0.1 ～ 18 GHz |
2. orria:
| kodea | Komentarioen |
| CM | Norberarena |
3. orria:
| kodea | Connector Mota | Komentarioen |
| N | Konektorerik ez | Single-mode 9/125 μm fiber pigtail |
| A | FC / APC | |
| P | FC/PC |
● Neurriak
Zuntzaren tolestura-erradioa gutxienez 20 mm-koa da, zuntza kaltetzea saihesteko.
Ziurtatu zuntz akoplamenduaren alderdia garbi dagoela optozirkuitura konektatu aurretik.
ESD babes egokia beharrezkoa da biltegiratzean, garraioan eta erabileran.
Gure fotodetektagailu estandar guztiak modulutan pertsonaliza daitezke!
aplikazioak
Zuntz optikozko komunikazioa
Radar Informazioaren Prozesamendua
Gerra Elektronikoa
Abiadura Handiko Seinaleen Proba eta Neurketa
Segurtasuna eta Zaintza
