LK-NY55D Potentzia Handiko DWDM DFB Laserra
- Direct Current Coupling
- Goi-Dinamikoko-Irismena
- Low Threshold Current
- Irteera Potentzia Handia
- 14pin Butterfly Package
- Operating Case Temperature: -20 to 70℃
- Fidagarritasun handia
- Up to 100mw high power output
- Polarization Maintaining (PM) fiber
Produktuaren Deskribapena
LK-NY55D laser is designed to serve as high-power, wavelength-specific optical emitter, which is ideal for integration with an external modulator within CATV and DWDM systems. It is particularly suited for applications involving super trunking and distribution. The wavelengths offered by this series adhere to the ITU Grid standards in terms of both range and channel specifications.
This series comes with polarization-maintaining (PM) fiber and features direct current (dc) coupling. It includes an integrated Thermoelectric Cooler (TEC), a thermistor for temperature sensing, and a monitor photodiode for optical power monitoring. The module is housed in a 14-pin butterfly package that is compatible with the OC-48 pin layout, and it incorporates an optical isolator within the package itself.
Ezaugarri teknikoak
| Ezaugarri elektriko/optikoak (TC = 25 ± 3 ℃ ) | ||||||
|---|---|---|---|---|---|---|
| Parametroa | Sym. | Baldintzan | Min | Typ | Max | Unitateak |
| Frequency | f | - | 0.01 | - | 1 | Ghz |
| Banda-zabalera (-3dB, I=200mA) | S21 | - | 1 | Ghz | ||
| Optical output power | P | 40 mW version, T = Tset, IF = IOP50 mW version, T = Tset, IF = IOP63 mW version, T = Tset, IF = IOP80 mW version, T = Tset, IF = IOP100 mW version, T = Tset, IF = IOP |
40 50 63 80 100 |
- | - | mW |
| Atalase-korrontea | ith | BOL | - | - | 40 | mA |
| Funtzionamendu-korrontea | Iop | 40 mW version, BOL 50 mW version, BOL 63 mW version, BOL 80 mW version, BOL 100 mW version, BOL |
- - - |
- - - |
280 350 450 580 650 |
mA |
| Funtzionamendu tentsioa | Vop | BOL, IF = IOP | - | - | 2.5 | V |
| Peak wavelength | λ | T = Tset, IF = IOP | - | 1550 | - | nm |
| Rative intensity noise | rhine | - | - | - | -160 | dB / Hz |
| Alboko moduaren ezabatze-erlazioa | SMSR | 30 | - | - | dB | |
| Polarization extinctionratio | FOR | IF = IOP | 17 | - | - | dB |
| Wavelength drift over TC Range | ∆λTOP | T = TOP | - | - | 40 | pm |
| Thermistor resistance | Rth | TOP= 25 ℃ | 9.5 | 10 | 10.5 | KΩ |
| Thermistor Temp. Coefficients | TCTH | TOP= 25 ℃ | - | -4.4 | - | %/°C |
| TEC korrontea | Itec | -20℃<TC<70 ℃ | -1.0 | - | 1.5 | A |
| TEC tentsioa | Vtec | -20℃<TC<70 ℃ | -2.0 | - | 3.0 | V |
| RF inpedantzia | zin | 40 MHz - 1002 MHz | 1 | - | 6 | Ω |
| Monitor PD current | Im | IF = IOP, VMPD = -5 V | 0.1 | - | 2.5 | mA |
| Monitor PD Dark current (PD) | Id | IOP = 0 mA, VMPD = -5 V | - | - | 0.2 | uA |
| Tipikoa eta Absolutua Gehienezko Balorazioa | |||||
|---|---|---|---|---|---|
| Parametroa | Sym. | Baldintzan | Min. | Max. | Unitatea |
| Laser forward DC current | If | - | - | 750 | mA |
| Laser reverse voltage | V | - | - | 2 | V |
| Photodiode Reverse Voltage | VR | - | - | 10 | V |
| Operazioa tenperatura | to | - | -20 | + 70 | º C |
| Biltegiratze tenperatura | Ts | - | -40 | + 85 | º C |
| ESD | - | HBM: R = 1500 Ω, C = 100 pF | -500 | 500 | V |
Notes: All laser chips come from wafers that have been certified using a representative lot of devices that must achieve an acceptable yield for burn-in.

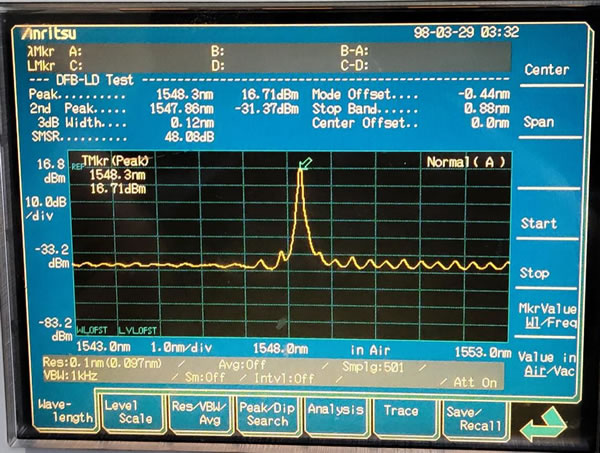

● Typical Data

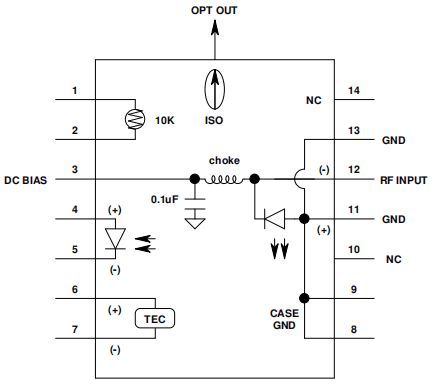

● Electrical schematic
| Lead# | Funtzio | Lead# | Funtzio |
| 1 | thermistor | 8 | GND |
| 2 | thermistor | 9 | GND |
| 3 | LD-(Bias) | 10 | NC |
| 4 | PD anode | 11 | GND(LD+) |
| 5 | PD cathode | 12 | RF IN |
| 6 | Cooler+ | 13 | GND(LD+) |
| 7 | Cooler- | 14 | NC |

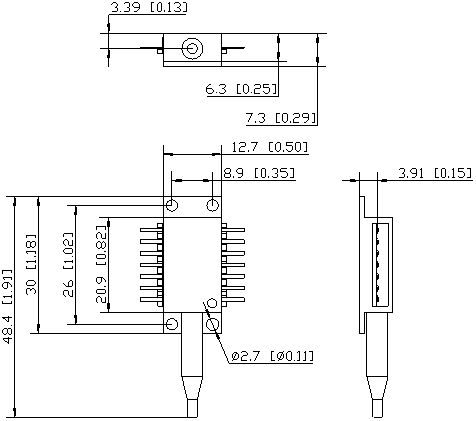

● Dimentsioak eta pinak (unitatea: mm [hazbete])
RF Connector: SMA
● Eskaera-informazioa
1. orria:
| kodea | Deskribapena |
| 55 | DWDM High Power 14PIN butterfly package |
2. orria:
| kodea | Potentzia optikoa |
| 040 | 40mW |
| 050 | 50mW |
| 063 | 63mW |
| 100 | 100mW |
3. orria:
| Channel | Maiztasuna (THz) | Erdiko uhin-luzera (nm) | Channel | Maiztasuna (THz) | Erdiko uhin-luzera (nm) | |
| C01 | Any desired custom wavelength | C37 | 193.7 | 1547.72 | ||
| C02 | Non-ITU, 1547 nm – 1560 nm | C38 | 193.8 | 1546.92 | ||
| C03 | Non-ITU, 1557 nm – 1560 nm | C39 | 193.9 | 1546.12 | ||
| C04 | Non-ITU, 1530 nm – 1560 nm | C40 | 194 | 1545.32 | ||
| C15 | 191.5 | 1565.50 | C41 | 194.1 | 1544.53 | |
| C16 | 191.6 | 1564.68 | C42 | 194.2 | 1543.73 | |
| C17 | 191.7 | 1563.86 | C43 | 194.3 | 1542.94 | |
| C18 | 191.8 | 1563.05 | C44 | 194.4 | 1542.14 | |
| C19 | 191.9 | 1562.23 | C45 | 194.5 | 1541.35 | |
| C20 | 192 | 1561.41 | C46 | 194.6 | 1540.56 | |
| C21 | 192.1 | 1560.61 | C47 | 194.7 | 1539.77 | |
| C22 | 192.2 | 1559.79 | C48 | 194.8 | 1538.98 | |
| C23 | 192.3 | 1558.98 | C49 | 194.9 | 1538.19 | |
| C24 | 192.4 | 1558.17 | C50 | 195 | 1537.4 | |
| C25 | 192.5 | 1557.36 | C51 | 195.1 | 1536.61 | |
| C26 | 192.6 | 1556.55 | C52 | 195.2 | 1535.82 | |
| C27 | 192.7 | 1555.75 | C53 | 195.3 | 1535.04 | |
| C28 | 192.8 | 1554.94 | C54 | 195.4 | 1534.25 | |
| C29 | 192.9 | 1554.13 | C55 | 195.5 | 1533.47 | |
| C30 | 193 | 1553.33 | C56 | 195.6 | 1532.68 | |
| C31 | 193.1 | 1552.52 | C57 | 195.7 | 1531.9 | |
| C32 | 193.2 | 1551.72 | C58 | 195.8 | 1531.12 | |
| C33 | 193.3 | 1550.92 | C59 | 195.9 | 1530.33 | |
| C34 | 193.4 | 1550.12 | C60 | 196 | 1529.55 | |
| C35 | 193.5 | 1549.32 | C61 | 196.1 | 1528.77 | |
| C36 | 193.6 | 1548.51 | C62 | 196.2 | 1527.99 | |
4. orria:
| kodea | Deskribapena |
| PM | PM-FC/APC fiber connector, 0.9mm, 1m length |
● Neurriak
Zuntzaren tolestura-erradioa gutxienez 20 mm-koa da, zuntza kaltetzea saihesteko.
Ziurtatu zuntz akoplamenduaren alderdia garbi dagoela optozirkuitura konektatu aurretik.
ESD babes egokia beharrezkoa da biltegiratzean, garraioan eta erabileran.
aplikazioak
CATV
DWDM
Free Space Optics
Super trunking and distribution、
Signal Transmission in Optical Networks
