LK-DS-HES-C (Pertsonalizatua) Radio Altimeter Simulator-en oinarrizko modulua
- Altuera simulatu sorta zabala (0tik 22000ra gora);
- Zuzengarritasun handiko ezabatze-erlazioa
- Altimetroaren zehaztasun simulatu handia (≥1‰)
- Aukerako konfigurazio simulatua (210 konfigurazio baino gehiago onartzen ditu)
- Eskuzko etengailua eta etengailu automatikoa;
- Bolumenaren miniaturizazioa, bateragarritasun elektromagnetiko handia, lanaren fidagarritasun handia;
- Kontrol modu anitz: UART, LAN, etab.
- Hainbat proba-plataforma estandarren interfazea, hala nola PXI, VXI, LXI.
Produktuaren Deskribapena
The LK-DS-HES series offers a versatile core module that can be marketed as a standalone component or seamlessly integrated into more complex higher-order assemblies. These assemblies are designed with configurability in mind, allowing them to align with a diverse range of performance criteria to satisfy the specific form, fit, and functional demands of our clientele.
In contrast to conventional Surface Acoustic Wave (SAW) delay line systems, the LK-DS-HES series boasts a multitude of superior attributes. These include an expansive operational frequency range, exceptional directivity suppression, the capability to handle triple transit signals that are otherwise incalculable, the ability to operate over extended periods without the need for recalibration, and an enhanced level of operational reliability.
Ezaugarri teknikoak
Ezaugarri elektriko/optikoak
| Parametroa | Parametroen balioak | Unitatea | Komentarioen | ||
| Min | Tipikoak | Max | |||
| Frekuentzia sorta | 4 | - | 4.6 | GHz | |
| Anplitude-erantzuna | - | ± 1.5 | ± 2 | dB | |
| Simulatu altuera | 1 | - | 22000 | m | hedagarria |
| Altueraren zehaztasuna simulatu | 0.5% | 1% | - | - | |
| Sarrera gehieneko potentzia | - | 2 | Norberarena | W | Etengabeko uhina |
| - | 100 | Norberarena | W | Pultsu-uhin | |
| VSWR sarrera | - | 1.3 | 1.5 | - | |
| Irteera VSWR | - | 1.3 | 1.5 | - | |
| Inpedantzia | - | 50 | - | Ω | |
| Simula ezazu atenuazio-tarte doigarria | - | 80 | Norberarena | dB | |
| zuzeneko ezabatze-erlazioa | 60 | 80 | - | dBc | |
| hirukoitz garraio seinaleak | Ez | ||||
| Eragile tenperatura | -40 | - | + 70 | ℃ | Kalitate mailarekin pertsonalizatua |
| Biltegiratze Tenperaturaren Barrutia | -55 | - | + 85 | ℃ | |
| Simulatu altuera vs. tenperatura | - | - | 7 | ppm/℃ | |
| Simula zehaztasuna tenperaturaren arabera | - | 3 | 6 | %/℃ | Kalte-ordaina eman daiteke. |
The packages and the pins (Unit: mm[inch] )

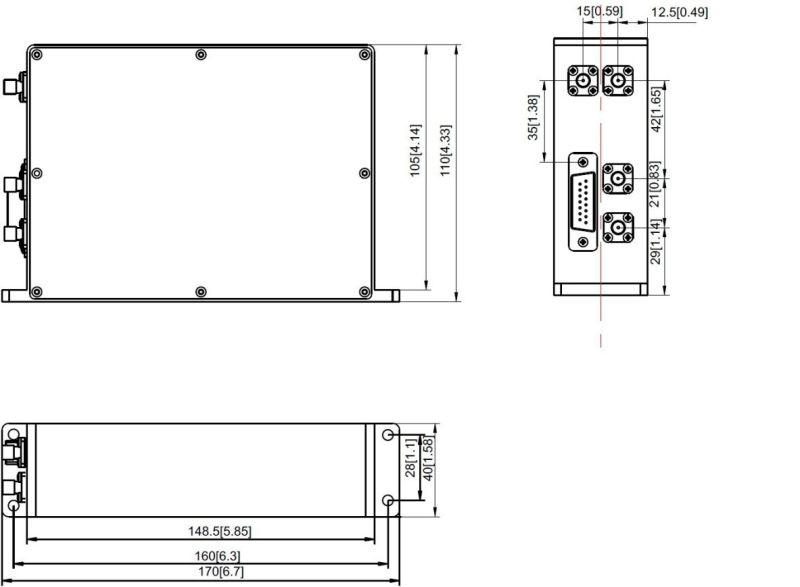

Fiber-optic box

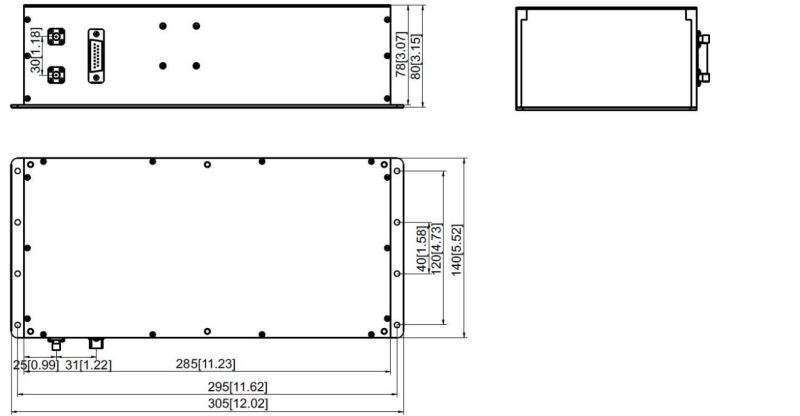

Microwave box
RF konektorea: SMA-K (pertsonalizatua)
DC konektorea: DE-9PS (pertsonalizatua)
aplikazioak
Place:Radio altimeter for radar,AEW,satellite,helicopter and etc
Measure the accuracy of altimeter
Ikerketaren eta jarraipenaren sekretutasuna neurtu
Measurement of other parameter
