LK-HPPD-Ku Potentzia handiko InGaAs Fotodetektagailu orekatua
- Banda zabalera zabala
- Bias-T integratua
- DC Akoplatua
- Hermetically Sealed, SMA Connector
- Iluntasun-korronte baxua, seinale-zarata erlazio altua.
- Forma-faktore txikia.
Produktuaren Deskribapena
The High-Speed Balanced Photodetector (HPPD-Ku) is a precision optoelectronic device tailored for digital and analog applications. This module integrates an InGaAs PIN photodiode with a spectral response range from 1250 to 1650 nanometers, inclusive of the necessary matching electronics to ensure signal integrity and performance.
LK-HPPD-Ku is capable of delivering a bandwidth of 18 gigahertz, making it suitable for high-speed data transmission applications. It operates on a +5-volt power supply, aligning with standard power requirements for stability and efficiency。 The module is compatible with standard single-mode 9/125-micrometer optical fibers, ensuring seamless integration with existing fiber infrastructure. The Radio Frequency (RF) output port is equipped with an SMA-compatible connector, which is impedance-matched to 50 ohms, facilitating optimal signal transfer and minimizing signal loss.
Ezaugarri teknikoak
| Tipikoa eta Absolutua Gehienezko Balorazioa | ||||
|---|---|---|---|---|
| Parametroa | Sym. | Typ | Balorazioa | Unitatea |
| Biltegirako tenperatura-tartea | TSTG | -45 ～ +85 | -55 ～ +100 | ℃ |
| Funtzionamendu-kaxa tenperatura-tartea | TC | 25 | -40 ～ +85 | ℃ |
| Alborapen-tentsioa | VR | +5 | +5 ～ +9 | V |
| Sarrerako potentzia optikoa | Pin | + 10 | + 17 | dBm |
| Erredura-potentzia optikoa | PB | - | + 20 | dBm |
| Berun soldadura tenperatura | Tp | 280 (10 s) | 330 (10 s) | ℃ |
| Ezaugarri elektriko/optikoak (TC = 22 ± 3 ℃) | |||||
|---|---|---|---|---|---|
| Parametroa | ikur | Probaren egoera | Parametroen balioak | Unitatea | |
| Uhin-luzeraren barrutia | λ | - | 1000 ~ 1650 | nm | |
| Maiztasun-tartea | - | - | Ku - Band | - | |
| Seinale txikiko banda-zabalera | f-3dB | TC = 22 ± 3 ℃ | 0.8 ~ 18 | GHz | |
| Erantzukizuna | Re | VR , Pin =1mW | λ = 1310 nm | ≥ 0.85 | A / W |
| λ = 1550 nm | ≥ 0.8 | ||||
| Anplitudearen lautasuna | A | TC =-45～+85 ℃ | ≤ ± 1.5 | dB | |
| Saturazio-potentzia optikoa | Ps | VR , λ = 1550 nm AC modulatua |
+ 17 | dBm | |
| Korronte iluna | Id | VR | ≤ 10 | nA | |
| Saturation RF Output Power | Pout | - | -10 | dBm | |
| Irteera inpedantzia | RL | - | 50 | Ω | |

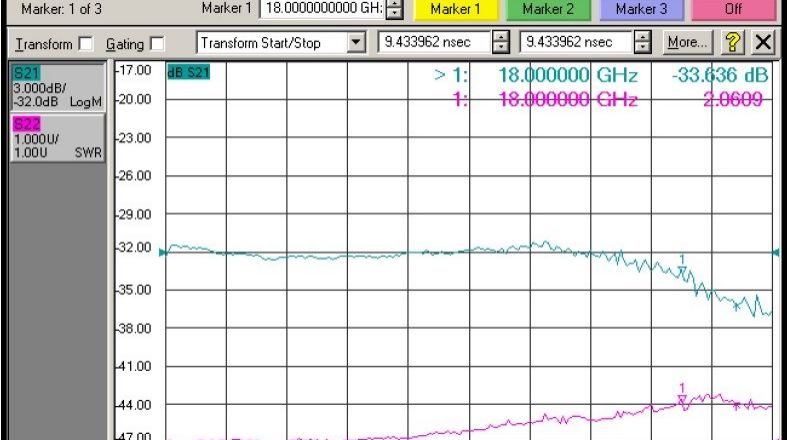

● Erantzun-kurba tipikoak
(VR, λ=1550nm, TC =25 ºC, Pin=0dBm)
（ Ku - Band Photodetector Frequency Response）

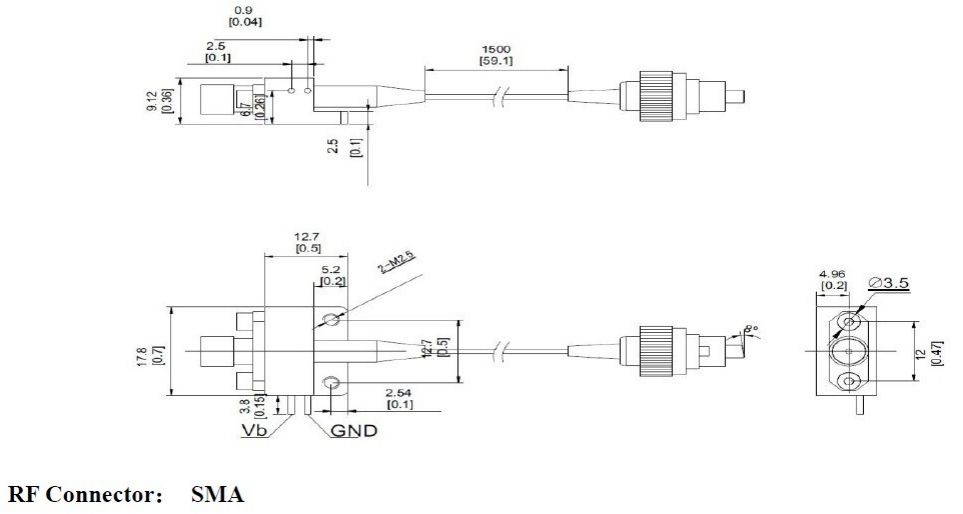

● Dimension and Pins ( Unit: mm[inch] )
●Ordenatzen informazioa
1. orria:
| kodea | Banda-zabalera analogikoa |
| KU | 0.8 ～ 18GHz |
2. orria:
| kodea | Connector Mota | Komentarioen |
| N | No Connector | Single-mode 9 / 125 μm fiber pigtail |
| A | FC / APC | |
| P | FC / PC |
● Neurriak
The fiber bending radius no less than 20 mm for avoiding fiber damaged.
Be sure the fiber coupling facet is clean before connecting it to opto-circuit.
The suitable ESD protection is required in storage, transportation and using.
Gure fotodetektagailu estandar guztiak modulutan pertsonaliza daitezke!
aplikazioak
Optical-fiber Communication
Radar Informazioaren Prozesamendua
Gerra Elektronikoa
High-speed Signal Test and Measurement
Segurtasuna eta Zaintza
