LK-NYC10D DML DFB laser modulua
- DML DFB Laser Teknologia
- ITU-Standard DWDM Wavelength
- Goi-Dinamikoko-Irismena
- Banda-zabalera 10 GHz baino hobea
- Excellent wavelength stability
- Operate temperature (-40℃～70℃)
Produktuaren Deskribapena
LK-NYC10D DML Laser Module is an advanced optical transceiver unit, meticulously assembled with a Directly Modulated Laser (DML) Distributed Feedback (DFB) laser, an automatic optical power control circuit, an automatic temperature control circuit, a voltage stabilizing conversion circuit, and a monitoring indication circuit.
This high-speed DML DFB laser is designed to operate within the ITU-standard dense wavelength division multiplexing (DWDM) wavelength spectrum, ensuring compliance with international telecommunications protocols. The modulation bandwidth exceeds 10GHz, facilitating high-speed data transmission capabilities. The module is capable of delivering an output power in excess of 5mW, which is essential for maintaining signal integrity across various network infrastructures.
Powered by a single positive power supply, the LK-NYC10D series module is engineered for stable operation across a voltage range from +7V to +36V. Furthermore, the module is equipped with a functional status indication system that provides real-time feedback on the normalcy of the power supply and optical power output, enhancing system reliability and simplifying diagnostics.
Ezaugarri teknikoak
Gehienezko Balorazio Absolutuak
| Parametroa | Ikonoa | Min. | Tip. | Max. | Unitatea |
| Biltegiratze tenperatura | TSTG | -55 | + 25 | + 85 | ℃ |
| Operazioa tenperatura | TC | -40 | + 25 | + 70 | ℃ |
| RF sarrerako potentzia1 | Pin | - | + 10 | + 20 | dBm |
| Tentsioa | Vin | +7 | + 12 | + 36 | V |
(1) Continuous wave (CW)
Zehaztapen optiko eta elektrikoak (TC = 22±3℃)
| Parametroa | Ikonoa | Probaren egoera | Min. | Tip. | Max. | Unitatea | Komentarioen |
| Uhin-luzera | λ | - | 1527.99 | - | 1563.05 | nm | ITU estandarra |
| Maiztasuna (3dB) | f3dB | S banda | 0.1 | - | 3.5 | GHz | - |
| C banda | 0.1 | 8.5 | GHz | - | |||
| Irteerako Potentzia Optikoa | P | - | 5 | 10 | - | mW | - |
| Intentsitate erlatiboaren zarata | rhine | - | - | - | -155 | dBc/Hz | - |
| VSWR | VSWR | - | - | - | 2 | ||
| Sarrerako 1 dB Konpresioa | - | - | + 13 | + 15 | - | dBm | - |
Energia-iturria (TC = 22±3℃)
| Parametroa | Min. | Tip. | Max. | Unitatea |
| Tentsioa | +7 | + 12 | + 36 | V |
| Oraingo(2) | 0.07 | 0.1 | 1 | A |
(2) Proba-baldintza: Vin = +12V.
● Datu tipikoak

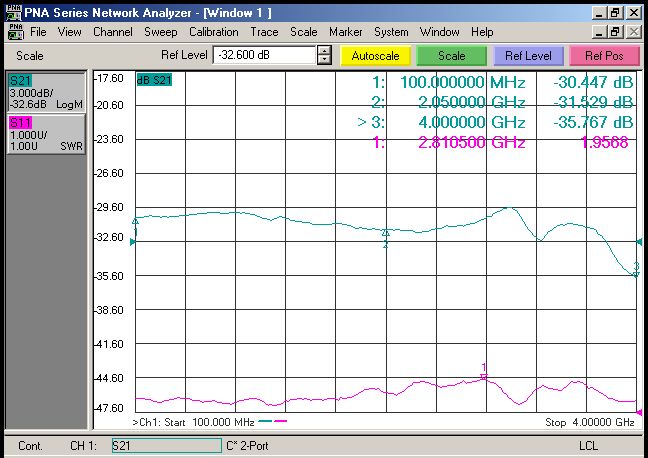

Fig. 1 LK-NYC10D-S DML DFB Laser Typical Frequency Curve
Fig. 2 LK-NYC10D-C DML DFB Laser Typical Frequency Curve
● Ohiko kurba espektral
Fig. 3 LK-NYC10D DML DFB Laser Typical spectrum Curve
● Dimentsio unitatea: mm [hazbete]
Figure 4 LK-NYC10D DML DBF Laser Module Dimension
RF konektorea: SMA
Energia konektorea: J30J-9-ZKP
● Eskaerari buruzko informazioa
1. orria:
| Model | Uhin-luzera tipikoa |
| S | 0.1 ～ 3.5 GHz |
| C | 0.1 ～ 8.5 GHz |
2 fitxa
| NO. | Maiztasuna (THz) | Uhin-luzera (nm) | NO. | Maiztasuna (THz) | Uhin-luzera (nm) | |
| C15 | 191.5 | 1565.50 | C39 | 193.9 | 1546.12 | |
| C16 | 191.6 | 1564.68 | C40 | 194 | 1545.32 | |
| C17 | 191.7 | 1563.86 | C41 | 194.1 | 1544.53 | |
| C18 | 191.8 | 1563.05 | C42 | 194.2 | 1543.73 | |
| C19 | 191.9 | 1562.23 | C43 | 194.3 | 1542.94 | |
| C20 | 192 | 1561.41 | C44 | 194.4 | 1542.14 | |
| C21 | 192.1 | 1560.61 | C45 | 194.5 | 1541.35 | |
| C22 | 192.2 | 1559.79 | C46 | 194.6 | 1540.56 | |
| C23 | 192.3 | 1558.98 | C47 | 194.7 | 1539.77 | |
| C24 | 192.4 | 1558.17 | C48 | 194.8 | 1538.98 | |
| C25 | 192.5 | 1557.36 | C49 | 194.9 | 1538.19 | |
| C26 | 192.6 | 1556.55 | C50 | 195 | 1537.4 | |
| C27 | 192.7 | 1555.75 | C51 | 195.1 | 1536.61 | |
| C28 | 192.8 | 1554.94 | C52 | 195.2 | 1535.82 | |
| C29 | 192.9 | 1554.13 | C53 | 195.3 | 1535.04 | |
| C30 | 193 | 1553.33 | C54 | 195.4 | 1534.25 | |
| C31 | 193.1 | 1552.52 | C55 | 195.5 | 1533.47 | |
| C32 | 193.2 | 1551.72 | C56 | 195.6 | 1532.68 | |
| C33 | 193.3 | 1550.92 | C57 | 195.7 | 1531.9 | |
| C34 | 193.4 | 1550.12 | C58 | 195.8 | 1531.12 | |
| C35 | 193.5 | 1549.32 | C59 | 195.9 | 1530.33 | |
| C36 | 193.6 | 1548.51 | C60 | 196 | 1529.55 | |
| C37 | 193.7 | 1547.72 | C61 | 196.1 | 1528.77 | |
| C38 | 193.8 | 1546.92 | C62 | 196.2 | 1527.99 |
3. orria:
| Model | Connector | Komentarioen |
| N | Ez | Flange |
| A | FC / APC | 9/125μm SM zuntz estandarra |
| P | FC / PC | 9/125μm SM zuntz estandarra |
aplikazioak
Antena urrunetik kontrolatzea
Sare zelularrak eta PCSak
RF lotura analogikoen transmisioa
Jarraipena, Telemetria eta Kontrola
Banda zabaleko haririk gabeko komunikazioa
DWDM Sistema
Haririk gabeko Backhaul
