LK-HSPD Abiadura Handiko InGaAs fotodetektagailua
- Wide Bandwidth，High Speed
- Bias-T integratua
- DC Akoplatua
- Hermetikoki itxita, SMA konektorea
- Iluntasun-korronte baxua, seinale-zarata erlazio altua.
- Forma-faktore txikia.
Produktuaren Deskribapena
LK-HSPD high-speed detection module is engineered to cater to both digital and analog uses. This module is equipped with an InGaAs PIN photodiode that has a response wavelength ranging from 1250 to 1650 nm, along with the essential matching electronics.
LK-HSPD is capable of delivering bandwidths of 8 GHz, 12 GHz, 18 GHz, 22 GHz, and 30 GHz. The operation of the module is based on a power supply of either +3.3V or +5V, depending on the specific model. It is designed to work with a standard single-mode fiber of 9/125μm. The RF output features an SMA-compatible connector or a 2.92 mm connector, both with a 50 ohm impedance match.
LK-HSPD is hermetically sealed to safeguard against environmental factors, thereby enhancing its durability and reliability. It boasts a lightweight design, with a mass of less than 15 grams, which is ideal for applications where weight is a critical factor. The module is certified in accordance with the Restriction of Hazardous Substances (RoHS) Directive 2.0, confirming its compliance with stringent environmental and safety regulations.
Ezaugarri teknikoak
| Tipikoa eta Absolutua Gehienezko Balorazioa | ||||
|---|---|---|---|---|
| Parametroa | Sym. | Typ | Balorazioa | Unitatea |
| Biltegirako tenperatura-tartea | TSTG | -45 ～ +85 | -55 ～ +100 | ℃ |
| Funtzionamendu-kaxa tenperatura-tartea | TC | 25 | -40 ～ +85 | ℃ |
| Alborapen-tentsioa | VR | 3.3 edo 5 | 2.8 ～ 5.25 | V |
| Sarrerako potentzia optikoa | Pin | +3 | + 10 | dBm |
| Erredura-potentzia optikoa | PB | - | + 13 | dBm |
| Berun soldadura tenperatura | Tp | 280 (10 s) | 330 (10 s) | ℃ |
| Electrical / Optical Characteristics ( TC = 22 ± 3 ℃ ) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Parametroa | ikur | Probaren egoera | Parametroen balioak | Unitatea | ||||||
| Uhin-luzeraren barrutia | λ | - | 1000 ~ 1650 | nm | ||||||
| Maiztasun-tartea | - | - | C-Band | X-Band | Ku-Band | Ku+-Band | K+-Band | PLUS | - | |
| Seinale txikiko banda-zabalera | f-3dB | TC= 22 ± 3 ℃ | 0.1 ~ 8 | 0.3 ~ 12 | 0.8 ~ 18 | 2 ~ 22 | 2 ~ 30 | 0.3 ~ 18 | GHz | |
| Erantzukizuna | Re | VR , Pin=1mW | λ = 1310nm | ≥ 0.85 | ≥ 0.85 | ≥ 0.8 | ≥ 0.75 | ≥ 0.75 | ≥ 0.75 | A / W |
| λ = 1550nm | ≥ 0.95 | ≥ 0.95 | ≥ 0.75 | ≥ 0.70 | ≥ 0.65 | ≥ 0.70 | ||||
| Anplitudearen lautasuna | A | TC =-40～+85 ℃ | ≤ ± 1.5 | ≤ ± 1.5 | ≤ ±1.5 | ≤ ± 2 | ≤ ± 2 | ≤ ± 1.5 | dB | |
| Irteera VSWR | VSWR | - | ≤ 2 | ≤ 2 | ≤ 2.5 | ≤ 2.5 | ≤ 2.5 | ≤ 2.5 | - | |
| Alborapen-tentsioa | VR | - | + 3.3 | + 3.3 | + 3.3 | + 3.3 | +5 | +5 | V | |
| RF Connector | - | - | SMA | SMA | SMA | 2.92mm | 2.92mm | SMA | - | |
| Saturazio-potentzia optikoa | Ps | VR , λ = 1550nm AC modulatua |
+7 | +7 | +7 | +7 | +7 | + 10 | dBm | |
| Korronte iluna | Id | VR | ≤ 10 | ≤ 10 | ≤ 10 | ≤ 10 | ≤ 10 | ≤ 10 | nA | |
| Saturazio RF irteerako potentzia | Pout | - | -10 | dBm | ||||||
| Irteera inpedantzia | RL | - | 50 | Ω | ||||||
● Erantzun-kurba tipikoak
(VR , λ=1550nm , TC =25 ºC ,Pin=0dBm)

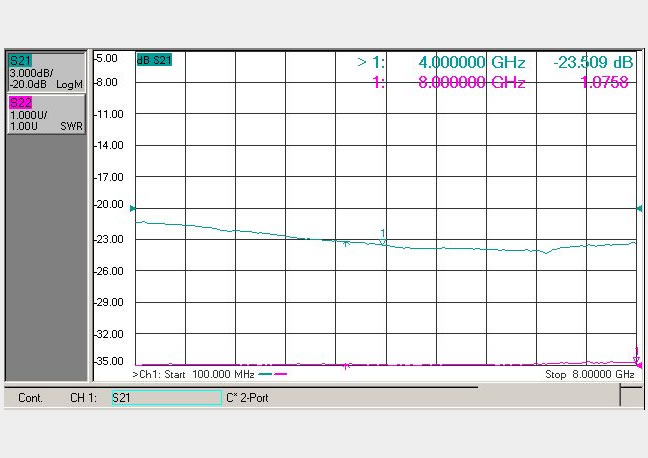

(Fig.1 C-Band Photodetector Frequency Response)

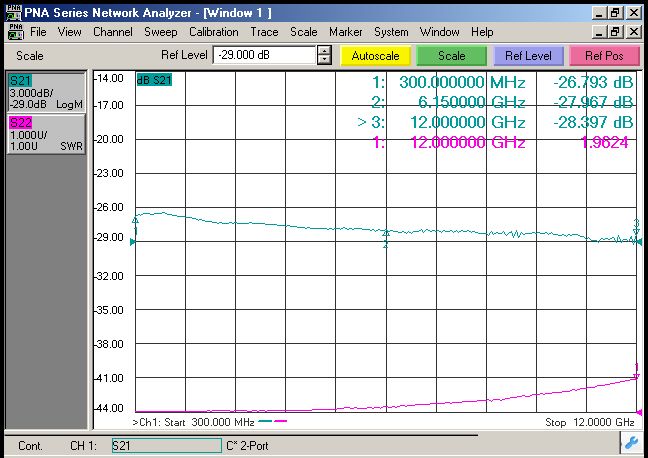

(Fig.2 X-Band Photodetector Frequency Response)

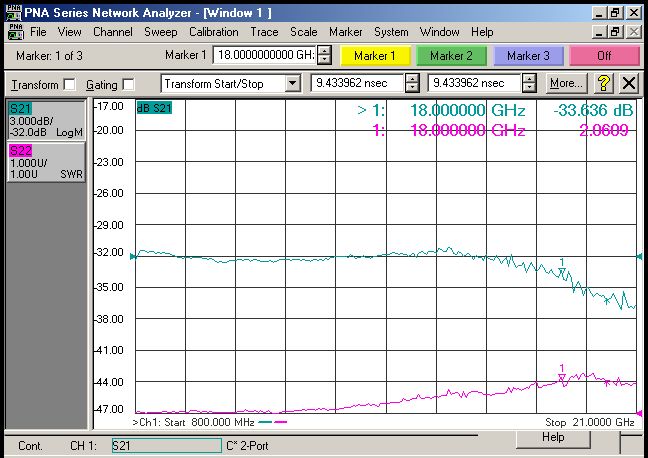

(Fig.3 Ku-Band Photodetector Frequency Response)

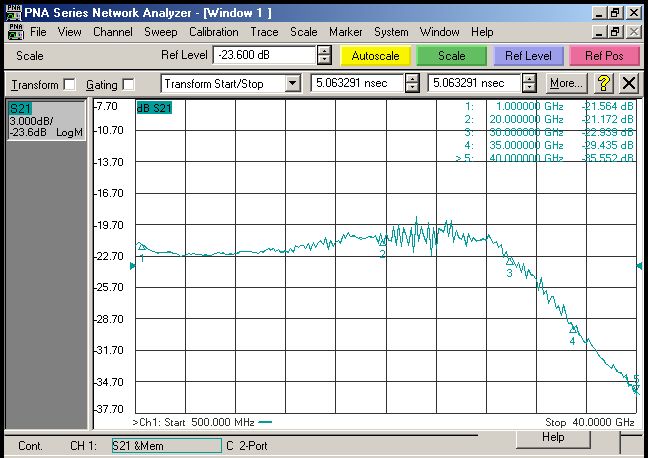

(Fig.4 K+ -Band Photodetector Frequency Response)

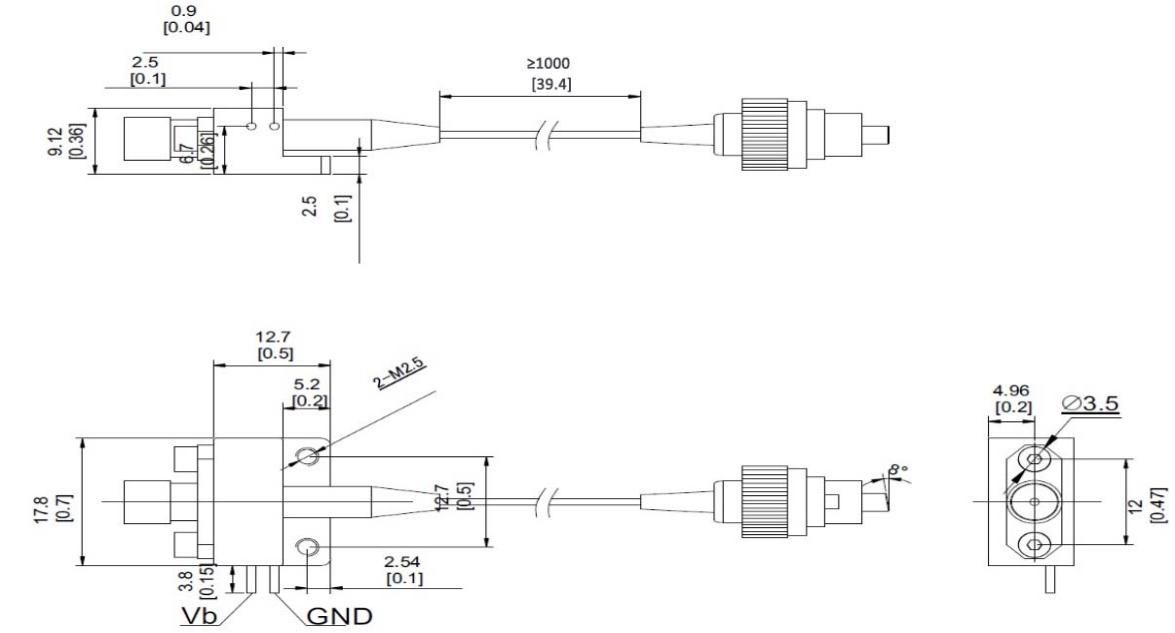

● Dimension and Pins (Unit:mm[ inch])
RF Connector： SMA or 2.92mm
● Eskaera-informazioa
1. orria:
| kodea | Banda-zabalera analogikoa |
| C | 0.1 ～ 8 GHz |
| X | 0.3 ～ 12 GHz |
| Ku | 0.8 ～ 18 GHz |
| Ku+ | 2 ～ 22 GHz |
| K+ | 2 ～ 30 GHz |
| Plus | 0.3 ～ 18 GHz |
2. orria:
| kodea | Connector Mota | Komentarioen |
| N | Konektorerik ez | Single-mode 9/125 μm fiber pigtail |
| A | FC / APC | |
| P | FC/PC |
● Neurriak
The fiber bending radius no less than 20mm for avoiding fiber damaged .
Ziurtatu zuntz akoplamenduaren alderdia garbi dagoela optozirkuitura konektatu aurretik.
ESD babes egokia beharrezkoa da biltegiratzean, garraioan eta erabileran.
Gure fotodetektagailu estandar guztiak modulutan pertsonaliza daitezke!
aplikazioak
Zuntz optikozko komunikazioa
Radar Informazioaren Prozesamendua
Gerra Elektronikoa
Abiadura Handiko Seinaleen Proba eta Neurketa
Segurtasuna eta Zaintza
